Halcon
產品特點
| 圖案名稱 | 材質 | 最小線寬(μm) | 最大尺寸(mm) | 厚度(mm) | 公差(μm) | 工藝 | 定制 |
|---|---|---|---|---|---|---|---|
| Halcon | 玻璃(G) | 1 | 700 x 800 | 0.5/0.7/1/1.6/2.3/3/4.8 | 1 | 光刻 | 可定制 |
| 陶瓷(C) | 50 | 190 x 139 | 1/0.635 | 1 | 光刻 | 可定制 |

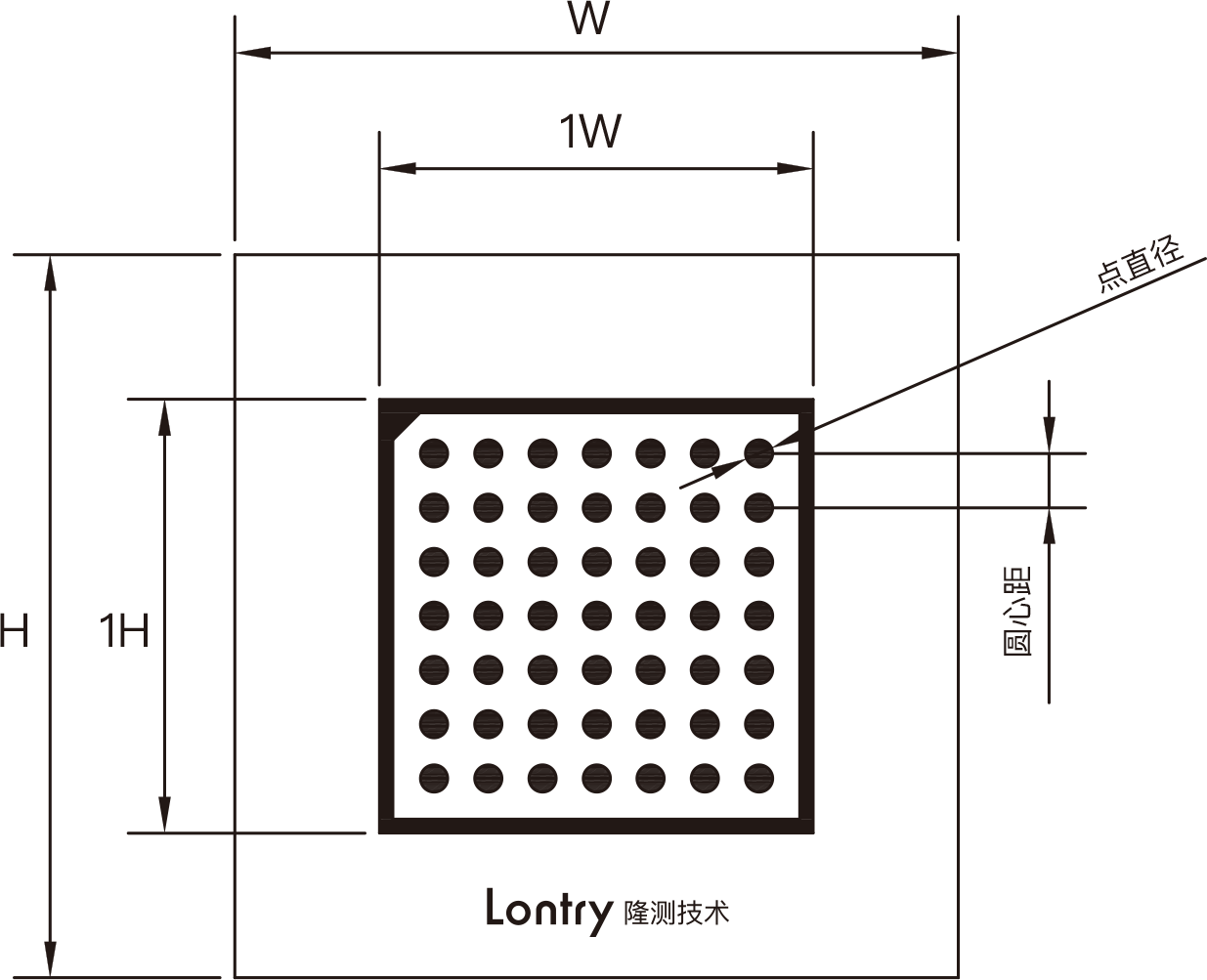

尺寸說明圖
| 型號 Model | 外形大小 W x H (mm) | 圖案大小 IW x IH (mm) | 圓點個數 R XC | 點直徑 Diameter (mm) | 圓心距 Distance (mm) | 圖案精度 Precision (um) |
|---|---|---|---|---|---|---|
| LTH-010-02-G/C | 10x10 | 2x2 | 7×7 | 0.25 | 0.5 | ±1 |
| LTH-010-03-G/C | 10x10 | 3x3 | 7x7 | 0.1875 | 0.375 | ±1 |
| LTH-010-05-G/C | 10x10 | 5x5 | 7×7 | 0.3125 | 0.625 | ±1 |
| LTH-010-06-G/C | 10x10 | 6x6 | 7x7 | 0.375 | 0.75 | ±1 |
| LTH-011-08-G/C | 11x11 | 8x8 | 7x7 | 0.5 | 1 | ±1 |
| LTH-020-10-G/C | 20x20 | 10x10 | 7x7 | 0.625 | 1.25 | ±1 |
| LTH-030-20-G/C | 30x30 | 20x20 | 7x7 | 1.25 | 2.5 | ±1 |
| LTH-040-30-G/C | 40x40 | 30x30 | 7×7 | 1.875 | 3.75 | ±1 |
| LTH-050-40-G/C | 50x50 | 40x40 | 7x7 | 2.5 | 5 | ±1 |
| LTH-060-50-G/C | 60x60 | 50x50 | 7x7 | 3.125 | 6.25 | ±1 |
| LTH-068-60-G/C | 68x68 | 60x60 | 7x7 | 3.75 | 7.5 | ±1 |
| LTH-100-80-G/C | 100x100 | 80x80 | 7x7 | 5 | 10 | ±1 |
| LTH-120-100-G/C | 120x120 | 100x100 | 7x7 | 6.25 | 12.5 | ±1 |
| LTH-135-120-G/C | 135x135 | 120x120 | 9x9 | 6 | 12 | ±1 |
| LTH-150-140-G/C | 150x150 | 140x140 | 9x9 | 7 | 14 | ±1 |
| LTH-220-200-G/C | 220x220 | 200x200 | 7x7 | 12.5 | 25 | ±1 |
| LTH-220-10-G/C | 220x220 | 200x200 | 9x9 | 10 | 20 | ±1 |
